North Korea unveils its uranium enrichment facility for the first time

On September 13, 2024, Rodon Sinmun, the official newspaper of the Workers' Party of Korea in North Korea, reported that Kim Jong-un had inspected a nuclear production facility and provided on-site guidance. The site visited by him includes a uranium enrichment facility that produces nuclear material for nuclear warheads, and this is the first time that the country has publicized the site of a uranium enrichment facility with photographs.

Uranium enrichment facilities are known to be located in Nyongbon in the southeastern part of the country, where nuclear facilities are concentrated. In June of this year, the International Atomic Energy Agency (IAEA) stated that a uranium enrichment facility similar to Nyongbon is believed to be in the completion stage of construction on the site of a nuclear-related facility being built in Kanson, a suburb of the capital Pyongyang.[1] In addition, the IAEA stated at the end of December 2023, "There are signs that the experimental light water reactor under construction at Nyongbon has reached criticality. There are concerns that plutonium will be extracted through reprocessing of spent fuel and diverted to nuclear weapons."[2] The IAEA is alarmed that North Korea may move to increase its nuclear capability by strengthening its production of nuclear materials.

In this context, what is North Korea's intention in revealing its uranium enrichment facility for the first time? The Sasakawa Peace Foundation analyzed photos published in the Rodon Sinmun and newly obtained satellite images to find out North Korea's the production capacity of uranium for weapons use and its aims.

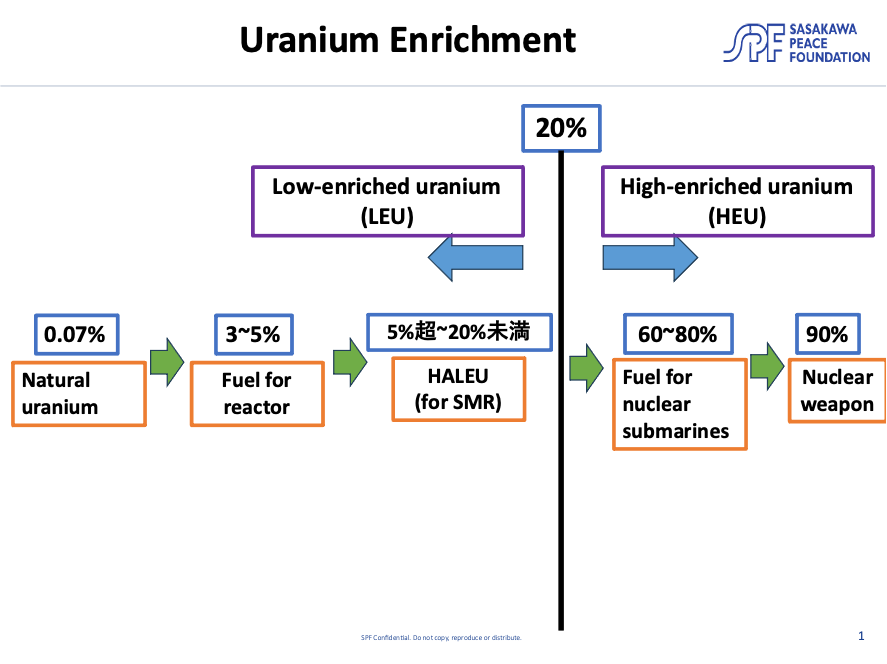

The process of uranium enrichment is essential to the use of nuclear energy. Natural uranium contains only 0.7% uranium-235, which fissions to emit enormous amounts of thermal energy, and the rest is composed of non-fissionable uranium-238. Therefore, it directly cannot be used as fuel for nuclear reactors or for nuclear weapons and must be processed to increase its ratio by separating uranium-235 from uranium-238 using a centrifuge or other means. As shown in the figure, low-enriched uranium with a higher percentage of uranium 235 (3~5%) is used for ordinary nuclear reactors. Once this enrichment technology of about 5% is established, it will theoretically be possible to produce 90% nuclear-weapons-grade highly enriched uranium. Centrifuges for enrichment separate uranium-235 and uranium-238 by centrifugal force, similar to the dehydrator in a washing machine, but they must rotate at supersonic speeds and require advanced technology. As discussed below (see Table 1), North Korea has a long history of nuclear development and is believed to have already established nuclear-weapons-grade uranium enrichment technology.[3]


Figure

　Source: Prepared by the author


The published photos give many indications about the size and characteristics of the uranium enrichment facility. First, the shape of the centrifuge suggests that it is North Korea's own centrifuge, modified based on a manufacturing method obtained via Pakistan ("Nuclear Black Market"[4] by Dr. Khan).

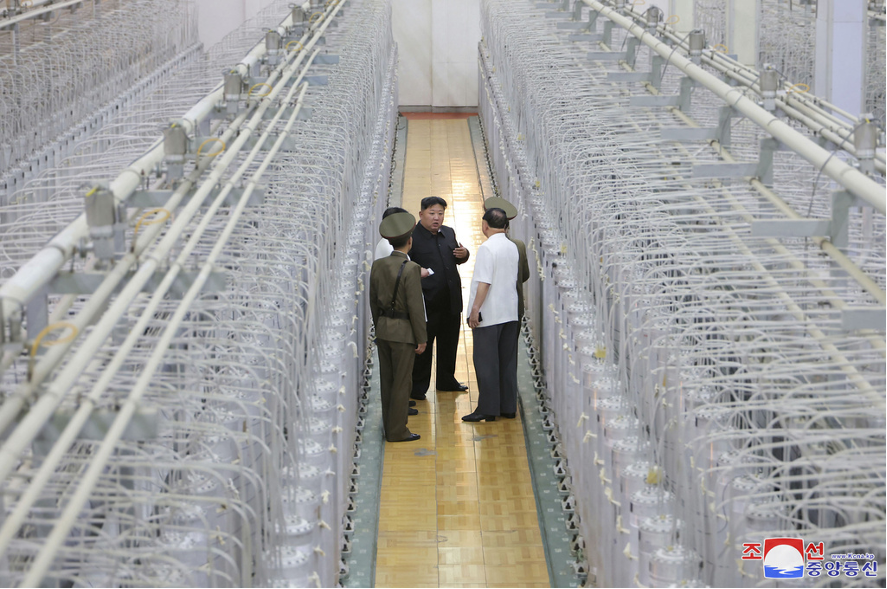

　Photo 1: North Korean enrichment facility unveiled to the public

　Source: Korean Central News Agency = Kyodo (provided by Kyodo News)

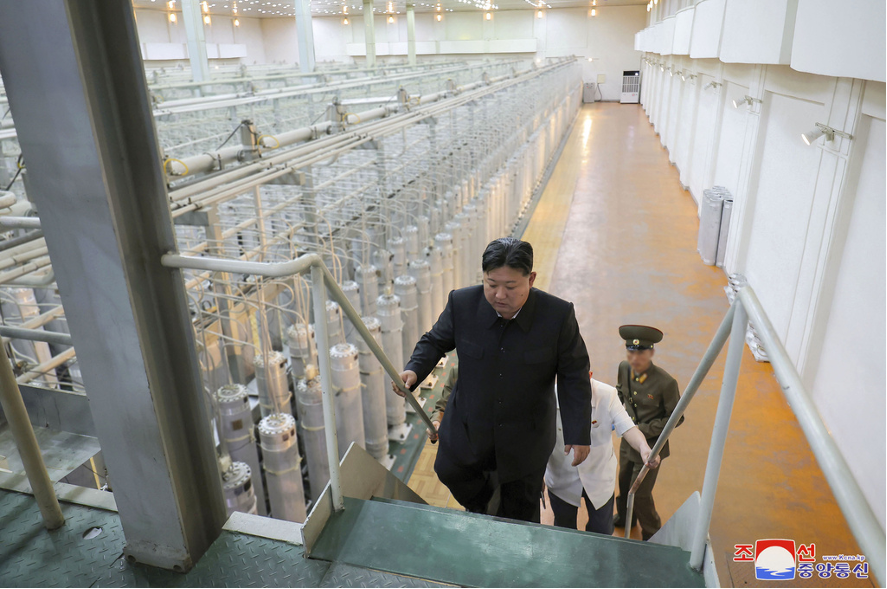

　Photo 2: North Korean enrichment facility unveiled to the public

　Source: Korean Central News Agency = Kyodo (provided by Kyodo News)


Although many countries are involved in uranium enrichment, including those that plan to use it for military purposes, only three companies in the world are capable of producing centrifuges on their own.

　- URENCO: British-German-Dutch consortium

　- Rosatom: Russia's national nuclear energy company

　- Japan Nuclear Fuel Limited: Rokkasho Village, Aomori Prefecture

Except for centrifuges of the above companies, they were copied or improved upon by Dr. Khan, who had worked for URENCO, and who secretly stole the method of manufacturing centrifuges and passed them on to the "Nuclear Black Market". So the characteristics of each of these products are easy to grasp.

URENCO and JNFL's centrifuges are characterized by their long length (3~5 meters) per unit. Conversely, Russia has succeeded in reducing costs by mass-producing centrifuges with extremely short lengths (about 60 cm) and connecting several units together.[5] As a result, Russia has become the world's number one of the enriched uranium production for nuclear reactors.

Photo 1 shows that the centrifuges in this enrichment facility are about 1.5 meters tall, slightly shorter than the height of Kim Jong-un and the other observers, and do not show any of the characteristics of the above three companies. While it is unlikely that URENCO or JNFL would provide technical assistance to North Korea, there is no evidence of Russian technical assistance for these centrifuges. When Russia exports nuclear technology that can be used for military purposes, it requires, in principle, that the bilateral agreement clearly prohibits military diversion or that the exported country accept the IAEA safeguards (inspections and monitoring of nuclear facilities and materials).[6] Russia is not believed to have been involved in the facility so far, although its future is unknown given its current increasing military cooperation with North Korea.

On the other hand, the type of centrifuge manufacture that Dr. Kahn passed on to the "Nuclear Black Market," called P2, is 1.5 meters long and matches the characteristics of the centrifuges in the photo. According to Rodon Sinmun, Kim Jong-un stated at the site, "We must further increase the number of centrifuges, further enhance the individual capacity of the centrifuges, and further strengthen the foundation to produce weapons-grade nuclear materials by promoting the project to introduce a new type of centrifuge, which has already reached the completion stage, as planned”. It is reasonable to conclude that North Korea obtained the manufacturing method via the "Nuclear Black Market" and modified it on its own.

Next is the production scale of the uranium enrichment facility. The above two photos were taken at different locations, the number of centrifuges at each of them exceeds 1,000. Analysis of the six photos released to the public indicates that the facility as a whole has more than 10,000 machines. One thousand centrifuges can produce approximately 22 kilograms of highly enriched uranium, and 10,000 units would produce 220 kilograms per year. Each nuclear warhead uses 22 kilograms of highly enriched uranium, which means that the facility can provide enough highly enriched uranium for approximately 10 nuclear weapons.

North Korea's nuclear development emerged in the 1980s, and the situation became tense in the 1990s with the first North Korean crisis. Subsequently, a framework for six-party talks was established, but before the international community could make progress in denuclearizing North Korea, the country conducted its first nuclear test in 2006 and has since accelerated its nuclear and missile development.


　Table 1：Major Background of North Korea's Nuclear Development

　Source: Maxar (provided by Hajime Matsukubo, secretary general of the Citizens' Nuclear Information Center)

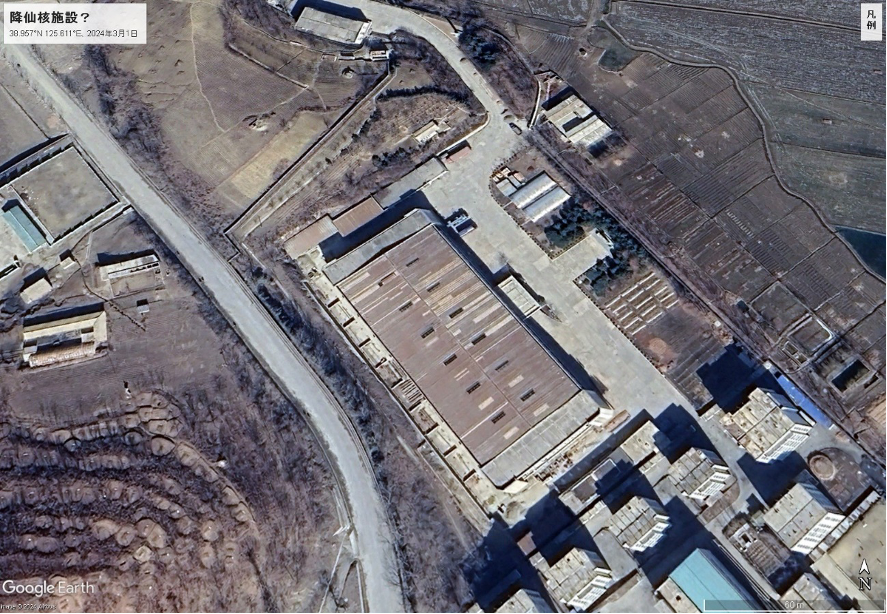

　Satellite image 2: Nyungbyon Uranium Enrichment Facility（March 1, 2024）

　Source: Google earth pro (provided by Hajime Matsukubo, secretary general of the Citizens' Nuclear Information Center)


The first reason for Kim Jong-un's visit and guidance of the uranium enrichment facility was to strengthen the production of nuclear materials for nuclear weapons. Plutonium-based nuclear weapons require only 3.5 ± 0.5 kilograms per warhead, whereas uranium-enriched weapons require 22 kilograms per warhead to ensure the same level of explosive power and are not suitable for miniaturization. On the other hand, plutonium requires the establishment of a special technique called "implosion"[8] to detonate, and if this technique cannot be established, the bomb will not detonate. Uranium has the advantage that it can be detonated without fail if the two masses hit each other.

It is difficult to motivate nuclear powers such as the U.S., China, and Russia, which have conducted dozens or even hundreds of nuclear tests and have fully established implosion technique, to enhance their uranium-type nuclear warheads. However, North Korea has conducted only six nuclear tests, and it is impossible to conclude whether it has established detonation technique. In light of these circumstances, the Stockholm International Peace Research Institute (SIPRI) noted in its Yearbook 2024 that North Korea has a motive to increase its production of enriched uranium. Specifically, North Korea currently possesses 50 nuclear warheads, an estimated 70% increase from a year ago, but only about 60~80 kilograms of nuclear weapon-grade plutonium, enough for about 20 nuclear warheads. In addition, given the possibility that it has not yet established the technique for implosion, it will be necessary to increase the production of enriched uranium and uranium-type nuclear warheads in order to enhance its nuclear capability.


Table 2：Number of nuclear warheads and nuclear material for nuclear weapons held by North Korea (estimated)
